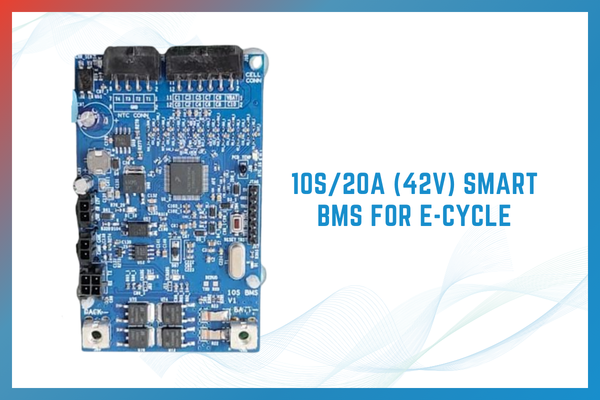

10S/20A (42V) Smart BMS for E-Cycle
The intelligence that keeps your e-cycle battery safe, balanced, and efficient.
Key Features
- Comprehensive Cell Monitoring: Continuously monitors cell voltage, temperature, and battery health to ensure safe and efficient battery operation.
- Advanced Protection Mechanisms: Provides overvoltage, undervoltage, overcurrent, thermal, and short-circuit protection to safeguard the battery and user.
- Smart Cell Balancing & Communication: Maintains balanced charging/discharging across all cells while enabling communication with motor controller, display, or mobile apps via interfaces like UART, CAN, or Bluetooth.
Technical Specifications
| Parameter | Detail |
|---|---|
| Battery Chemistry | Lithium-ion (Li-ion), LiFePO₄ |
| Voltage Range | 24V / 36V / 48V (common for e-cycles) |
| Number of Series Cells (S) | 7S, 10S, 13S, 14S |
| Current Rating | 15A to 30A continuous (up to 40A peak) |
| Balancing Type | Passive |
| Balancing Current | ~100-200mA |
| Overvoltage Protection | ~4.2V/cell (for Li-ion) |
| Undervoltage Protection | ~2.5-2.8V/cell |
| Overcurrent Protection | 1.5x–2x the rated current (with delay timing) |
| Temperature Range | -10°C to +60°C (operating), 0–45°C (charging recommended) |
| Communication | UART, I²C, CAN, Bluetooth |
| Sleep Current | <100μA (low standby power draw) |
| Short Circuit Protection | <1ms response time |
